ISLANDER
Islander
The Islander is a versatile landing barge perfect for the Westcoast waves. The 17 degree deadrise provides efficient wave cutting and displacement while the wide
chines improve handling and stability. The keel boasts a robust extrusion which offers a sense of security and peace of mind. The 5086 bottom and sides will
provide the greatest longevity and durability. In a cabin-less state, you can choose which cabinet or console you want to complete your boat. Whether you are
looking for a multi-function island hopper, or a commercial work-horse, the Islander is your best choice.
Click for Islander Specifications
| Specifications | |
|---|---|
| Lower Hull | 1/4in thick, 5086 Aluminum |
| Upper Hull | 3/16in thick, 5086 Aluminum |
| Deck, gunwale caps, etc. | 3/16in thick, 5052 Aluminum |
| Deadrise | 17degree @ transom, minimal progressive “VEE” |
| Keel | Extruded with keelson & double-hull |
| Chine | Reverse with Extrusion |
| Structure | Long Frame |
| Rub Rails | 3 Horizontal per side |
| Railings | not included |
| Storage | Transom locker, gunwale storage trays |
| Fuel Tank | Isolated Aluminum 1000L capacity |
| Actual Length from Stem to Stem | 9.28 m (362.1 in) |
| Registerable Length | 9.0m (29.5ft) |
| Overall Width | 3.15m (124 in) |
| Deck Width | 2.48 m (97.5 in) |
| Estimated Dry Hull Weight (no engines, cabin, or accessories) |
1797 kgs (3962 lbs) |
| Maximum Horsepower | 450hp (not included) |
| Maximum Hull Displacement | 3507.3 kgs (7732.2 lbs) |
| Transom | Outboard Pod Type, 38″ Twin engine spacing |
| Swim Grid | 28in x Full-Width Swim Grid |
| Front Gate | Winch-able type with traction and see-though leading edge. manual latches |
| Cabin | TBD (You can option to purchase one of many different console & cabin options) |
| Amenities | Includes Aluminum Cleats, Stabilizer Anode and Transducer mounting plates, Self bailing deck with 4in scuppers. |
| Trailer | Not included. A Tri-axle 15,000lb gvw trailer will be required. |
Contact us for a quote, delivery info, or any questions! Scroll down and click ‘GET IN TOUCH’.
Click for Islander Specifications
| Specifications | |
|---|---|
| Lower Hull | 1/4in thick, 5086 Aluminum |
| Upper Hull | 3/16in thick, 5086 Aluminum |
| Deck, gunwale caps, etc. | 3/16in thick, 5052 Aluminum |
| Deadrise | 17degree @ transom, minimal progressive “VEE” |
| Keel | Extruded with keelson & double-hull |
| Chine | Reverse with Extrusion |
| Structure | Long Frame |
| Rub Rails | 3 Horizontal per side |
| Railings | not included |
| Storage | Transom locker, gunwale storage trays |
| Fuel Tank | Isolated Aluminum 1000L capacity |
| Actual Length from Stem to Stem | 9.28 m (362.1 in) |
| Registerable Length | 9.0m (29.5ft) |
| Overall Width | 3.15m (124 in) |
| Deck Width | 2.48 m (97.5 in) |
| Estimated Dry Hull Weight (no engines, cabin, or accessories) |
1797 kgs (3962 lbs) |
| Maximum Horsepower | 450hp (not included) |
| Maximum Hull Displacement | 3507.3 kgs (7732.2 lbs) |
| Transom | Outboard Pod Type, 38″ Twin engine spacing |
| Swim Grid | 28in x Full-Width Swim Grid |
| Front Gate | Winch-able type with traction and see-though leading edge. manual latches |
| Cabin | TBD (You can option to purchase one of many different console & cabin options) |
| Amenities | Includes Aluminum Cleats, Stabilizer Anode and Transducer mounting plates, Self bailing deck with 4in scuppers. |
| Trailer | Not included. A Tri-axle 15,000lb gvw trailer will be required. |
This Islander 300W is a tourism craft specifically designed to transport People, Kayaks and their gear.
Contact us for a quote, delivery info, or any questions! Scroll down and click ‘GET IN TOUCH’.
Click for Islander Specifications
| Specifications | |
|---|---|
| Lower Hull | 1/4in thick, 5086 Aluminum |
| Upper Hull | 3/16in thick, 5086 Aluminum |
| Deck, gunwale caps, etc. | 3/16in thick, 5052 Aluminum |
| Deadrise | 17degree @ transom, minimal progressive “VEE” |
| Keel | Extruded with keelson & double-hull |
| Chine | Reverse with Extrusion |
| Structure | Long Frame |
| Rub Rails | 3 Horizontal per side |
| Railings | not included |
| Storage | Transom locker, gunwale storage trays |
| Fuel Tank | Isolated Aluminum 1000L capacity |
| Actual Length from Stem to Stem | 9.28 m (362.1 in) |
| Registerable Length | 9.0m (29.5ft) |
| Overall Width | 3.15m (124 in) |
| Deck Width | 2.48 m (97.5 in) |
| Estimated Dry Hull Weight (no engines, cabin, or accessories) |
1797 kgs (3962 lbs) |
| Maximum Horsepower | 450hp (not included) |
| Maximum Hull Displacement | 3507.3 kgs (7732.2 lbs) |
| Transom | Outboard Pod Type, 38″ Twin engine spacing |
| Swim Grid | 28in x Full-Width Swim Grid |
| Front Gate | Winch-able type with traction and see-though leading edge. manual latches |
| Cabin | TBD (You can option to purchase one of many different console & cabin options) |
| Amenities | Includes Aluminum Cleats, Stabilizer Anode and Transducer mounting plates, Self bailing deck with 4in scuppers. |
| Trailer | Not included. A Tri-axle 15,000lb gvw trailer will be required. |

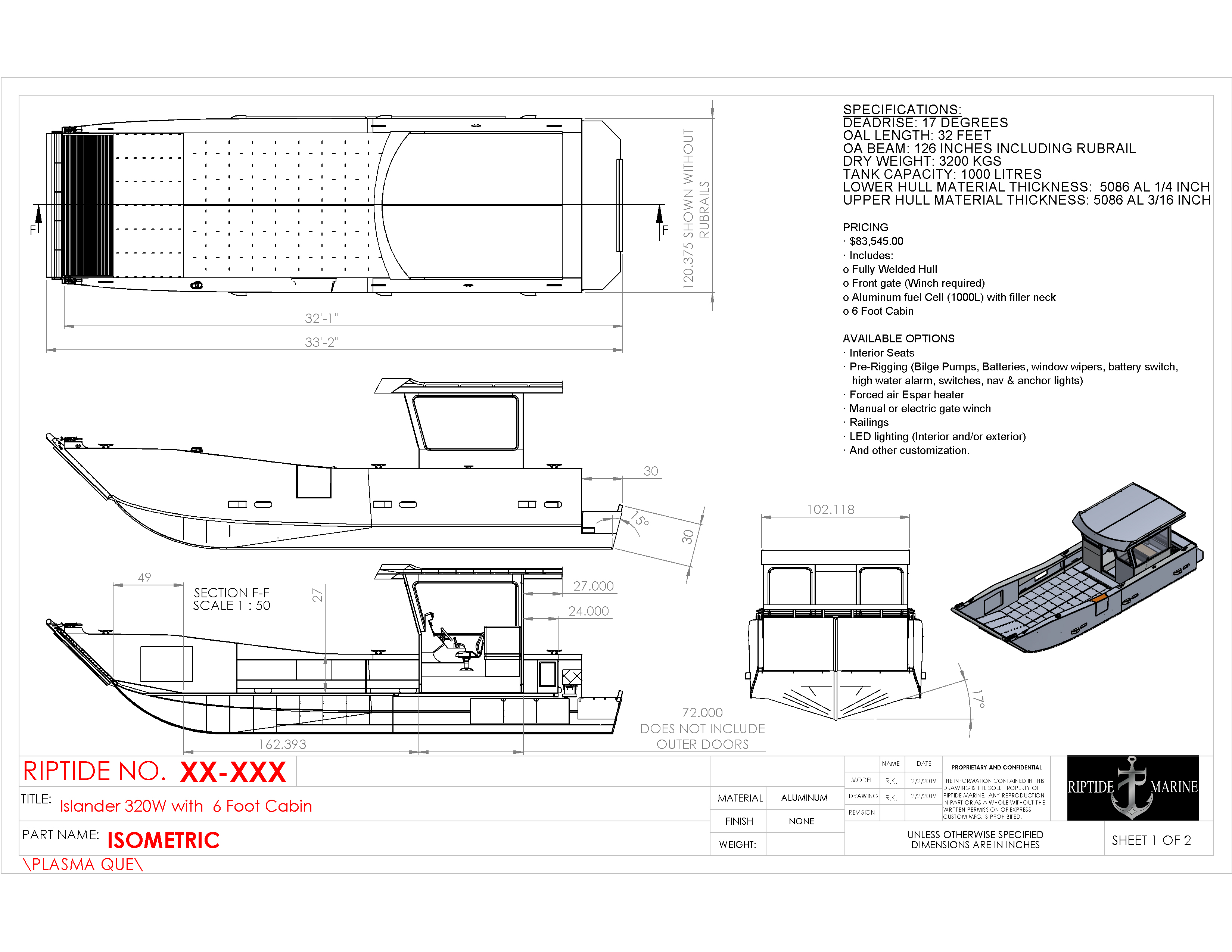

This Islander 320W is a custom designed tourism craft meant to carry 12 passengers and a Skipper.
Contact us for a quote, delivery info, or any questions! Scroll down and click ‘GET IN TOUCH’.
Click for Islander Specifications
| Specifications | |
|---|---|
| Lower Hull | 1/4in thick, 5086 Aluminum |
| Upper Hull | 3/16in thick, 5086 Aluminum |
| Deck, gunwale caps, etc. | 3/16in thick, 5052 Aluminum |
| Deadrise | 17degree @ transom, minimal progressive “VEE” |
| Keel | Extruded with keelson & double-hull |
| Chine | Reverse with Extrusion |
| Structure | Long Frame |
| Rub Rails | 3 Horizontal per side |
| Railings | not included |
| Storage | Transom locker, gunwale storage trays |
| Fuel Tank | Isolated Aluminum 1000L capacity |
| Actual Length from Stem to Stem | 9.28 m (362.1 in) |
| Registerable Length | 9.0m (29.5ft) |
| Overall Width | 3.15m (124 in) |
| Deck Width | 2.48 m (97.5 in) |
| Estimated Dry Hull Weight (no engines, cabin, or accessories) |
1797 kgs (3962 lbs) |
| Maximum Horsepower | 450hp (not included) |
| Maximum Hull Displacement | 3507.3 kgs (7732.2 lbs) |
| Transom | Outboard Pod Type, 38″ Twin engine spacing |
| Swim Grid | 28in x Full-Width Swim Grid |
| Front Gate | Winch-able type with traction and see-though leading edge. manual latches |
| Cabin | TBD (You can option to purchase one of many different console & cabin options) |
| Amenities | Includes Aluminum Cleats, Stabilizer Anode and Transducer mounting plates, Self bailing deck with 4in scuppers. |
| Trailer | Not included. A Tri-axle 15,000lb gvw trailer will be required. |
This Islander 320W is a custom designed commercial craft meant for Divers to repair other water craft.
Contact us for a quote, delivery info, or any questions! Scroll down and click ‘GET IN TOUCH’.
